Compressor systems naturally generate condensate during normal operations, surprising many with the amount of contaminants and moisture present. Condensate, an unavoidable byproduct of air compression, contains dirt, dust, oil, hydrocarbons, and other impurities from ambient air.
Properly managing this condensate is crucial for environmental compliance and operational efficiency. Various filtration and extraction methods are employed to remove these contaminants, ensuring safe disposal of the water.
Understanding the generation, impact, and management of condensate helps maintain an environmentally friendly and regulation-compliant operation while also protecting equipment from damage and reducing downtime.
Table of Contents
Understanding Air Compressor Condensate
Air compressor condensate is a byproduct of the air compression process, formed when atmospheric air, which naturally contains moisture, dust, and oil vapor, is compressed. Despite air treatment and filtration, some contaminants remain and become more concentrated. As the hot compressed air cools in components like the air receiver, the temperature drops below the dew point, causing moisture to condense into water.
This condensate isn’t just water; it’s a mixture that often includes oil and other pollutants. Even oil-free rotary screw air compressors can produce condensate containing oil due to contaminants in the inlet air. The volume of condensate generated can be significant, especially in hot and humid environments, and improper disposal can lead to environmental issues.
Effective air compressor condensate management is crucial to prevent corrosion in air equipment, protect compressed air lines, and comply with stringent environmental laws related to the disposal of condensate. Specialized systems, like oil-water separators, are often required to separate the oil from the water before safe disposal. Without proper management, condensate can accumulate within the compressor system, leading to inefficiencies, costly repairs, and potential violations of water pollution regulations.
In essence, understanding how condensate is formed and its impact on air compressor systems is key to maintaining efficient, compliant operations.
The Impact of Condensate on Compressed Air Systems
Excessive moisture on metals and machine parts is extremely problematic. If unmanaged, it leads to oxidation and eventual breakdown.
Excessive moisture builds up inside the air compressor system, contaminating the space. Operational efficiency is reduced but it also introduces moisture into the compressed air. Air compressor motors, piping lines, storage tanks, and connected equipment suffer when moisture or other contaminants are not removed.
When left untreated, corrosion from condensate leads to significantly greater instances of equipment breakdowns. It then becomes difficult to remove from the compressor system, requiring additional maintenance to manage the problem. Air leakages and other potential safety issues become a growing concern for facility management. Under certain circumstances when contamination is too severe, individual components or equipment must be replaced.
The capital investment is safeguarded by removing condensate, processing and then disposing of it in an environmentally conscious way. Operations will become more efficient and predictable, with fewer unexpected breakdowns affecting production facilities and manufacturing plants.
The purchase and installation of a condensate management system is expensive upfront but pays for itself in the long run with the avoidance of excessive downtime, a safer workplace, a better environmental record, and, not breaching UK regulations.
Legal and Environmental Considerations
Proper management of air compressor condensate is not just a technical necessity but a legal obligation. In the UK, condensate, which often contains oil and other contaminants from the compressed air supply, poses significant environmental risks if improperly disposed of. Discharging untreated water condensate into storm water drains or soil can lead to severe environmental damage, infringing water pollution regulations and harming local ecosystems.
UK regulations strictly limit the oil content in discharged water to 20 parts per million (PPM). To comply, compressor users must implement condensate treatment systems, such as oil-water separators, that effectively reduce oil levels in the condensate water before disposal. Monitoring condensate levels and ensuring the proper function of these systems is crucial. In many cases, businesses must obtain consent from local water authorities before they can dispose of the condensate, and they may need to register as Hazardous Waste Producers or Licensed Waste Carriers.
Non-compliance can result in hefty fines—up to £20,000—and even the shutdown of facilities. With environmental laws becoming increasingly stringent, staying updated on regulations is essential for avoiding penalties. By implementing effective condensate management practices, including the use of air dryers and monitoring systems, companies not only avoid legal repercussions but also demonstrate their commitment to producing quality air and safeguarding the environment.
In summary, managing condensate is crucial for legal compliance and environmental protection, helping businesses operate responsibly and efficiently while ensuring that the water content in compressed air does not lead to environmental harm.

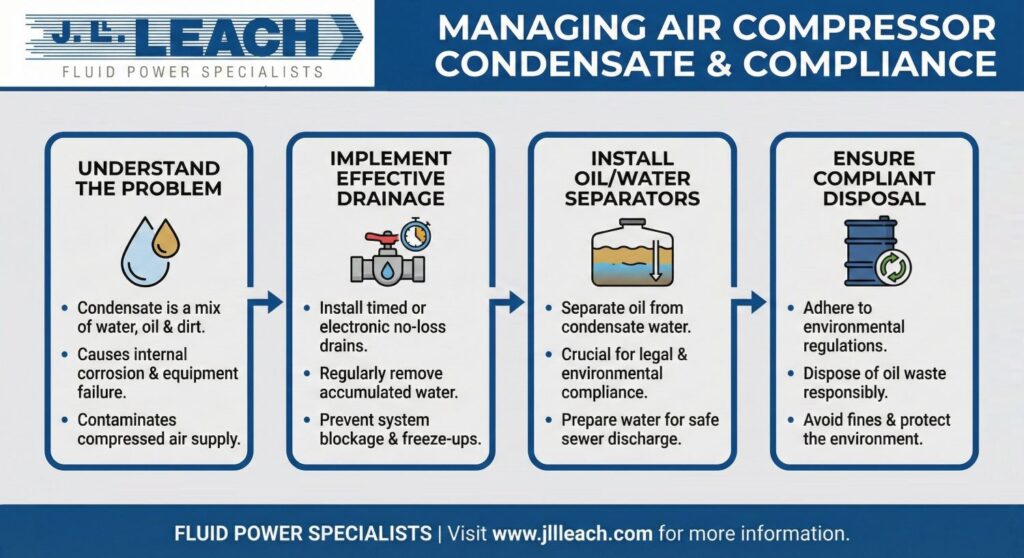

Condensate Management Solutions
Different condensate management solutions process condensate for subsequent disposal. The larger the condensed air volume required, the greater the need for a sophisticated system to process condensate.
Below are a few of the types of equipment used:
Oil-water separators – Separating oil from water is difficult. Desired results are achieved using various methodologies. Carbon filters or a filter cake are two of the most common. They allow water to permeate through, but oil is captured and removed. Depending on the equipment and the level of oil contamination, oil present at only 5 parts per million (PPM) is sometimes possible (well below the required 20 PPM). Also, some oil-water separators address pH neutralisation issues.
Cyclonic separators – These separators create an internal vortex using a centrifugal design. They are compact yet powerful. Condensate is captured and removed while permitting H2O release.
Drain valves – Along with condensate drains, automatic drain valves facilitate condensate removal. These prevent condensate building up inside the compressor system or contaminating air systems.
Discuss your condensate management needs with our qualified team at J LL Leach.
Practical Steps for Effective Condensate Management
Depending on the customer, a condensate management system can be included with a planned air compressor system or it is more of an afterthought.
Certainly, companies are wise to request systems to manage it. The extensiveness of the management system depends on multiple factors. Expected air processing volume and air pressure levels are important considerations, however, they are not the only ones.
Companies with older air compressor systems, inferior condensate management, or none at all face distinct challenges. In these scenarios, it is sensible to review the existing air compressor system for contamination issues. The next step is to implement a new system.
Maintenance is essential to ensure condensate is properly captured and processed. This thwarts a significant rise in the PMM of oil in the water for disposal. This could tip a company over the line into a non-intentional breach of environmental regulations. Therefore, filter replacement for oil-water separators, and regularly scheduled maintenance are required to maintain system efficiency.
The Future of Condensate Management
Advances in filtration technologies allow improvements in oil-water separation and other benefits. Upgrades to condensate management are sensible when existing systems are old and worn, and if effectiveness is declining.
Technological improvements also increase efficiency. These improvements make it less costly to process condensate and continue to meet ever-tightening environmental regulations. Changes to disposal regulations can catch companies on the wrong foot. Operating beyond current regulatory requirements prevents this outcome.
Conclusion
Effective condensate management is necessary for most air compressor systems. New and old compressors produce condensate as a byproduct – there is no avoiding this. Companies must, therefore, be proactive in their approach to meet regulatory requirements for its disposal.
Air compressor system management is essential to get the most out of your capital investment. Talk with our condensate management specialist to correctly assess your condensate management needs. Contact us today.
FAQ
What is air compressor condensate, and why is its disposal important?
Air compressor condensate is a byproduct formed when atmospheric air, which contains moisture and contaminants, is compressed. This condensate often contains oil, water, and other impurities that must be properly managed. Incorrect disposal of condensate can be detrimental to the environment, leading to water pollution and hefty fines. Proper disposal involves using systems like oil-water separators to ensure that the condensate water is treated and safe for release, protecting both the environment and compliance with regulations.
How does hot and humid air affect the production of condensate in air compressors?
Hot and humid air contains higher moisture levels, which leads to increased production of condensate when the air is compressed. As the hot compressed air cools in the system, such as in wet air receivers, more water condenses, resulting in litres of water that must be managed. This increased moisture content can strain condensate management systems and requires more frequent maintenance to prevent issues like corrosion or improper drainage.
What role do oil-water separators play in compressor installations?
Oil-water separators are crucial in compressor installations for managing condensate. When air is compressed, condensate is made that often includes oil and other contaminants. Oil-water separators are designed to remove the oil from the condensate water, ensuring that only clean water is discharged. This process is essential for complying with environmental regulations and preventing the detrimental effects of incorrect disposal on local ecosystems and water supplies.
