Industrial vacuum pumps are critical components in production settings. Their malfunction can lead to factory shutdowns and significant financial losses. By creating a pressure differential lower than atmospheric pressure, these machines enable various processes, including chemical distillation, hygienic packaging, and vacuum forming.

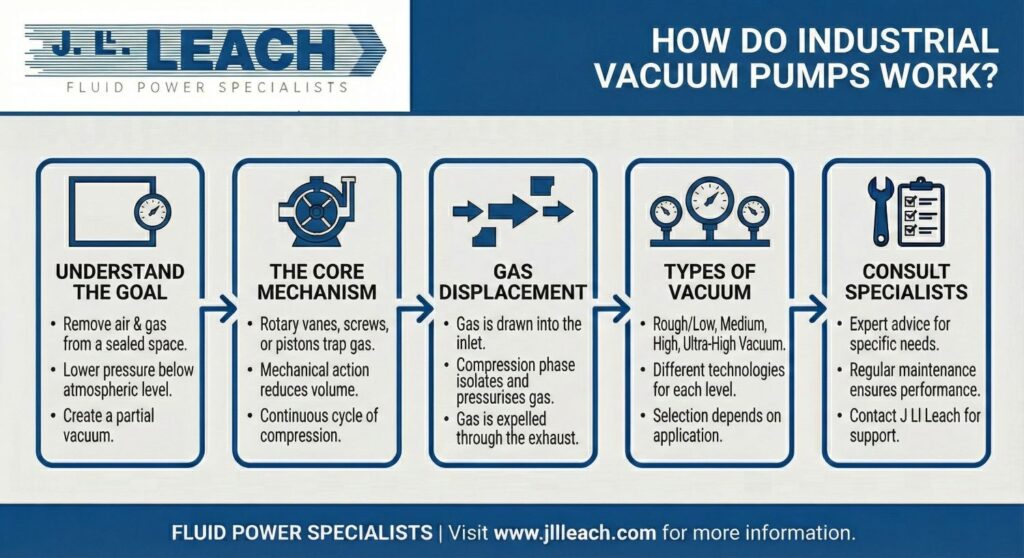

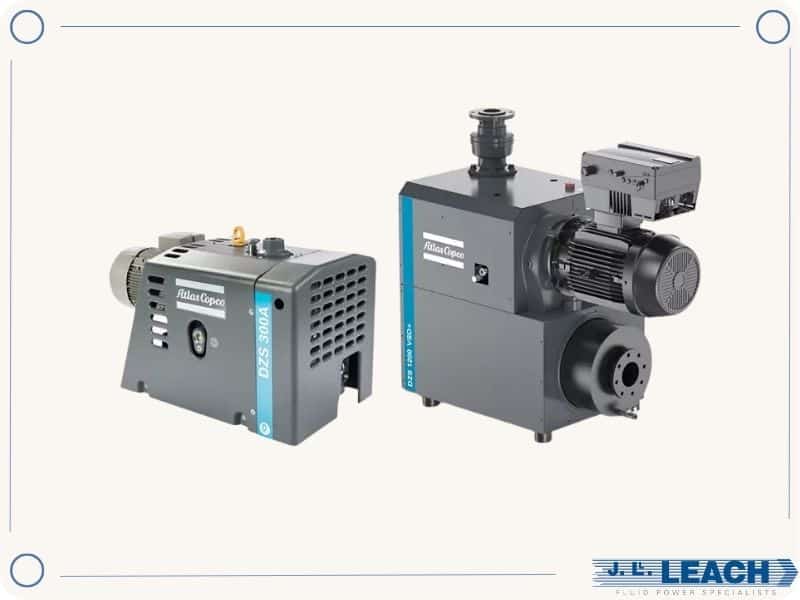

An industrial vacuum pump is a machine that makes the air in a small space less dense so that it can create a sub-atmospheric environment. It works by moving gas molecules from the process chamber, which has low pressure, to the exhaust, which has atmospheric pressure.
Operational Impact of Vacuum Regimes and Gas Dynamics
Vacuum performance is categorised by absolute pressure levels. Misunderstanding these regimes leads to incorrect pump specification and excessive energy expenditure. Standard atmospheric pressure is 1,013 mbar.
Defining Vacuum Regimes for Specification
The degree of vacuum required determines which technology is viable:
- Rough (Low) Vacuum (1,000 mbar to 1 mbar): For moving things around and packing food. In this regime, running a pump outside of its normal range causes it to overheat and lose efficiency.
- Medium Vacuum (1 mbar to 10⁻³ mbar): This is common in chemical processing and freeze-drying. In this range, the molecular density goes down, so finding leaks is even more important for system stability.
- High Vacuum (10⁻³ mbar to 10⁻⁷ mbar): Necessary for making semiconductors. Gas molecules hit the walls of the chamber instead of each other. This means that standard mechanical pumps need secondary boosters to work.
Pumping Speed vs Throughput: The Cost of Inefficiency
System productivity relies on two metrics: pumping speed (S), the volume removed per hour (m³/h), and throughput (Q), the actual mass of gas moved.
The relationship Q = P × S means that as pressure drops, the pump must work harder to move less mass. Oversizing a pump to compensate for poor system integrity is wasteful. Total “gas load”, comprising leaks, outgassing, and permeation, must be minimised to maintain vacuum levels without inflating energy bills.
Primary Industrial Pump Technologies and Trade-offs
Selecting the wrong pump technology risks process contamination or premature mechanical failure.
Rotary Vane: Versatility vs Contamination Risk
Rotary vane pumps feature an eccentric rotor with sliding vanes. They provide deep vacuum levels but require careful selection:
- Oil-Sealed: Provides superior sealing but risks hydrocarbon carry-over.
- Dry (Oil-Free): Prevents contamination in pharmaceutical or medical environments but has higher wear rates.
Rotary Screw: Efficiency in Continuous Operation
Rotary screw pumps use synchronised, counter-rotating screws to move gas axially. This non-contact design reduces wear and maintenance. Atlas Copco GHS VSD⁺ models utilise this principle to provide internal compression, which is more energy-efficient for high-demand UK manufacturing.
Claw Pumps: Durability in Abrasive Environments
Claw pumps utilise two non-contacting rotors to trap and compress gas. Because the compression chamber is dry, they are immune to the abrasive dust found in CNC woodworking and central vacuum systems. This durability prevents the frequent service shutdowns common with lubricated pumps.
Liquid Ring: Reliability for Wet Processes
Liquid ring pumps use a sealant liquid (usually water) to create a rotating ring. This ring acts as a constant heat sink, providing near-isothermal compression. They are essential for handling high moisture levels or condensable vapours that would otherwise destroy standard mechanical seals.
Vacuum vs Air Compressors: The System Integrity Risk
Vacuum pumps and air compressors are not interchangeable; they face opposite mechanical stresses. In a compressor, the highest pressure is at the discharge. In a vacuum system, the greatest pressure differential is at the inlet.
System performance is often limited by pipework integrity rather than pump capacity. Microscopic leaks, poor flange sealing, or contaminated inlet filters prevent a system from reaching design vacuum. Because there is little gas mass in a vacuum to carry away heat, these pumps rely heavily on external cooling. Inadequate ventilation leads to varnish formation in the lubricant and eventual pump seizure.
Energy Efficiency and Atlas Copco GHS VSD⁺
Fixed-speed vacuum pumps are inherently wasteful because they cannot adjust to varying production demands. Atlas Copco GHS VSD⁺ screw vacuum pumps resolve this by combining non-contact compression with IE5 permanent-magnet motors.
This technology adjusts motor speed in real-time so you can reduce annual energy expenditure by up to 50%. Unlike older vane pumps, the GHS VSD⁺ maintains high efficiency even at partial loads. Oil carry-over is kept below 3 mg/m³, protecting workplace air quality and extending separator service life.
Connectivity as a Maintenance Strategy
The HEX@™ controller and SMARTLINK connectivity convert mechanical data into operational security by:
- Providing remote performance monitoring to identify pressure drops.
- Automating purge cycles to prevent internal corrosion.
- Delivering predictive maintenance alerts to avoid unplanned downtime.
UK Compliance and Regulatory Risk
Operating non-compliant vacuum systems creates significant legal and operational exposure for UK businesses.
- HTM 02-01 (Medical Gas): Requires duplex or triplex vacuum plants. This ensures 100% flow capacity remains available if a primary pump fails, a mandatory requirement for patient safety in healthcare.
- PSSR 2000: Applies to vacuum vessels if they are pressurised to more than 0.5 bar during cleaning or discharge cycles. Failure to provide a Written Scheme of Examination (WSE) for such systems is a breach of safety law.
- ISO 8573-1 Class 0: Specifies oil-free air. This is a critical standard for the pharmaceutical sector to ensure product purity and avoid costly batch rejection.
- PUWER 1998: Mandates that equipment is safe and regularly inspected. The owner is legally responsible for ensuring that all vacuum equipment is serviced by a competent person.
Maintenance Checklist to Prevent Failure
Preventive maintenance is the only way to avoid the high costs of emergency repairs and lost production.
| Frequency | Action | Objective |
| Weekly | Inspect inlet filters | Prevent pressure drops and motor strain |
| Monthly | Verify oil clarity via the sight glass | Detect overheating or contamination |
| Quarterly | Leak detection survey | Reduce energy waste from atmospheric ingress |
| Annual | Full sensor and seal service | Ensure regulatory compliance and efficiency |
Strategic Value of Expert Vacuum Design
Selecting an industrial vacuum pump requires a complete analysis of gas load, duty cycles, and energy costs. Correct sizing and installation are the only ways to ensure a system meets both production targets and UK safety regulations.
