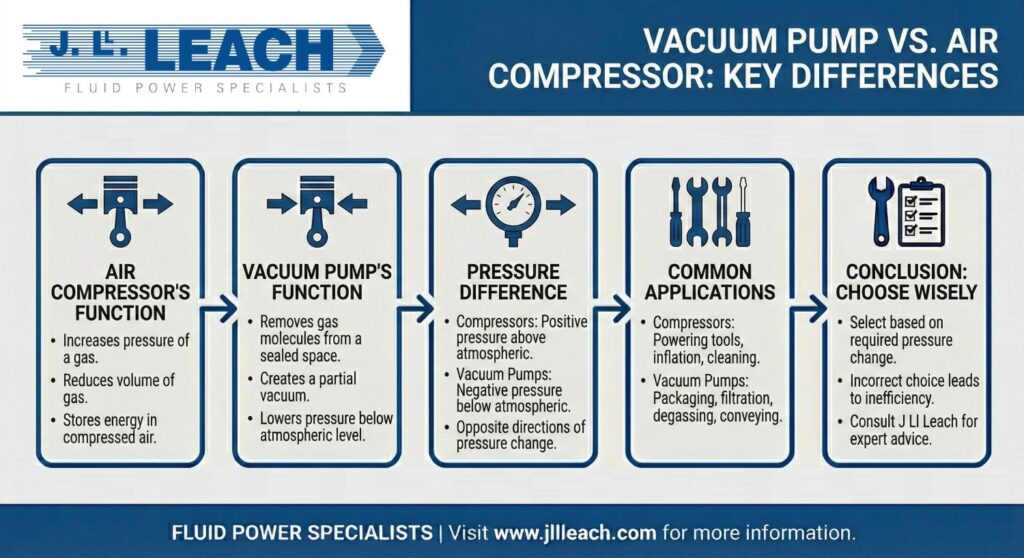

An air compressor increases air pressure to store and deliver energy, while a vacuum pump removes air molecules to create a controlled low-pressure environment.
These machines serve opposite mechanical purposes and are not interchangeable. In UK industrial settings, incorrect technology selection leads to system failure, increased energy waste, and legal non-compliance.
Why compressors push, and vacuum pumps pull
The fundamental difference between these technologies is their relationship to the atmospheric baseline. In the UK, standard atmospheric pressure is approximately 1013.25 mbar.
- Air Compressors (Positive Pressure): These machines intake ambient air and compress it, reducing its volume and increasing its density. This generates gauge pressure, which represents potential energy measured by how much it exceeds the surrounding atmospheric pressure.
- Vacuum Pumps (Negative Pressure): These devices extract molecules from a sealed system to lower the internal pressure toward absolute zero (absolute pressure).
Mechanical Principles and Architecture Contrast
Using similar internal parts does not make these machines interchangeable. Their internal engineering and system architectures are built for different thermodynamic loads.
Stored Energy vs. Continuous Evacuation
System architecture determines how your facility handles demand. Compressed air systems rely on stored energy. They use air receivers to buffer demand, allowing the compressor to stop or slow down while the process draws from the tank.
Vacuum systems do not store vacuum. There is no storage buffer for negative pressure. The pump must remove air continuously to maintain the setpoint. This makes vacuum systems highly sensitive to load variations and atmospheric “bleed-in” from leaks.
Thermodynamic Risks of Equipment Misuse
Attempting to generate a vacuum with an air compressor is a high-risk mechanical error.
- Implosion Hazard: Air receivers are built for internal tension. They will collapse under external atmospheric compression. Subjecting a standard tank to a vacuum causes a catastrophic structural implosion.
- Heat Dissipation: Compressors fail without a consistent mass flow of air for cooling. In a vacuum, air density is too low to transport heat. This results in rapid oil degradation, seal inversion, and mechanical seizure.
Why pumping capacity collapses in vacuum systems
For an air compressor, Free Air Delivery (FAD) remains relatively consistent across the pressure range. Vacuum performance is different.
As the vacuum deepens, the gas becomes thinner. Pumping capacity collapses because the machine captures fewer molecules per rotation. Systems sized solely on atmospheric displacement fail under load. When selectingAtlas Copco vacuum solutions, you must size equipment based on the required speed at your target absolute pressure.
Energy Efficiency via VSD+ Technology
Electricity accounts for 80% of total lifecycle costs. UK industrial energy rates exceeded 17.08 p/kWh in 2025, making efficiency a financial priority.
Atlas Copco GA VSD+ compressors and GHS VSD+ vacuum pumps use Interior Permanent Magnet (iPM) motors to match motor speed to demand.
- Compressor VSD logic maintains a constant discharge pressure.
- Vacuum VSD logic maintains a constant inlet vacuum setpoint.
VSD+ technology reduces energy bills by up to 60%. It eliminates the waste associated with fixed-speed machines that continue to run at full power during “unload” cycles.
UK Regulatory Scope: PSSR 2000
Non-compliance with the Pressure Systems Safety Regulations 2000 (PSSR) results in criminal prosecution.
- Air Compressors: PSSR applies to any system containing a “relevant fluid” at pressures exceeding 0.5 bar(g). You must have a Written Scheme of Examination (WSE) produced by a competent person.
- Vacuum Pumps: Because these operate below atmospheric pressure, they are generally exempt from PSSR. However, they remain subject to general health and safety duties under PUWER.
For assistance with statutory inspections and WSE documentation, refer to our guide on PSSR 2000 compliance.
Sector-Specific Use Cases
| Industry | Primary Vacuum Application | Primary Compressed Air Application |
| Food & Beverage | MAP Packaging (Oxygen removal) | Nitrogen generation |
| Pharmaceutical | Degassing and Distillation | Laboratory actuation and clean air |
| Manufacturing | CNC hold-down and lifting | Powering pneumatic tools |
In many packaging industry applications, both technologies are essential. Compressed air forms the container while vacuum handles the pick-and-place logistics.
Reducing Lifecycle Costs and Decision Risk
Incorrect maintenance and system leaks cause immediate financial losses.
- Ultrasonic Leak Detection: A 3mm leak in a compressed air system costs over £1,000 per year in wasted energy. We provide ultrasonic leak detection to identify losses in both pressure and vacuum lines.
- Filtration Maintenance: A 1 bar pressure drop caused by a clogged filter increases energy consumption by approximately 7%. Regular filter changes are vital for understanding air compressors and vacuum performance.
- Predictive Monitoring: SMARTLINK technology provides early warning of temperature spikes. This prevents the 25% efficiency loss caused by overheating components.
