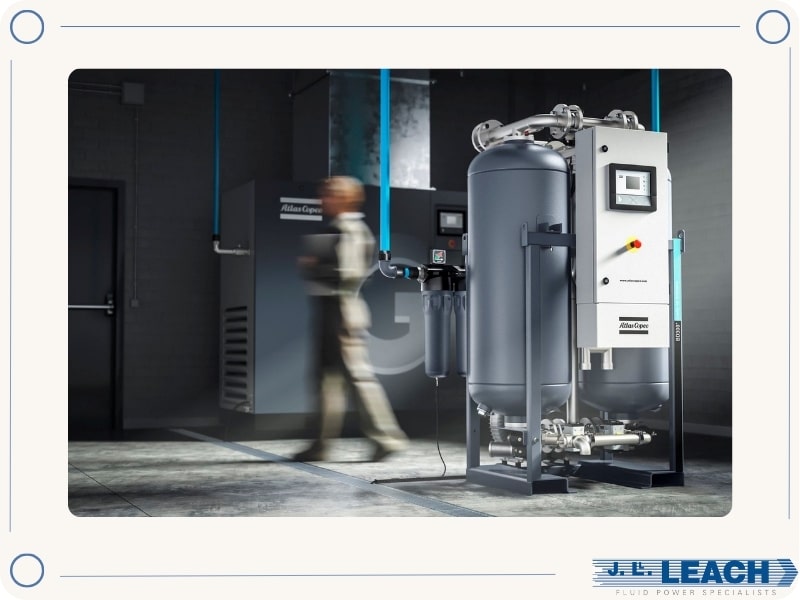

Liquid water in compressed air systems results from predictable thermodynamic behaviour during air compression and cooling. If unmanaged, this moisture accelerates corrosion, degrades pneumatic equipment, contaminates end products, and undermines compliance with UK safety and environmental regulations.
In high-humidity operating environments, moisture control is an essential system design requirement rather than a maintenance preference.
This article explains why water forms in compressed air lines, how pressure dew point defines air quality, and which mechanical failures cause moisture carryover. It also outlines diagnostic and engineering controls supplied by J Ll Leach to prevent condensate-related downtime in UK industrial facilities.
Why does water occur in compressed air systems?
Water occurs in compressed air systems because the compression process concentrates ambient moisture beyond the air’s holding capacity. Atmospheric air contains water vapour. When a compressor reduces the air volume, the quantity of vapour per unit of volume increases.
Temperature governs how much vapour air can hold. Cooling the air forces this vapour to reach a point of saturation. Excess vapour then condenses into liquid condensate. Condensate forms in every operating system and requires active removal to prevent downstream damage.
What is Pressure Dew Point (PDP)?
Pressure Dew Point is the temperature at which water vapour condenses within a pressurised system. PDP is the primary metric for measuring compressed air dryness. A lower PDP indicates drier air.
Target PDP levels vary by application:
| Application | Required PDP | Dryer Technology |
| General Industry | +3°C | Refrigerated Dryer |
| Food & Pharma | -40°C | Desiccant Dryer |
| Outdoor Pipework | < Ambient Temp | Desiccant Dryer |
Condensation forms in distribution lines whenever the pipework temperature falls below the system’s PDP.
How does the UK climate affect moisture levels?
The UK climate presents high ambient humidity levels, often exceeding 70–80% year-round. This environmental factor increases the volume of condensate a system must process. A 55 kW rotary screw compressor operating in these conditions can produce over 280 litres of liquid condensate every 24 hours.
UK summers push compressor room temperatures above 30°C. Higher inlet temperatures increase the moisture load on dryers. Winter conditions increase the risk of ice formation and corrosion in exposed air lines.
How do you troubleshoot water in air lines?
Effective troubleshooting follows a failure-probability hierarchy, starting with condensate drains, then dryer loading, and finally internal dryer faults.
| Component | Failure Symptom | Primary Action |
| Condensate Drain | Standing water in the receiver tank | Check for blockages/clean the solenoid |
| Aftercooler | Excessively hot air is entering the dryer | Clean cooling fins and check the fan |
| Refrigerated Dryer | High PDP alert on Elektronikon® | Verify refrigerant pressure and ambient temp |
- Condensate Drains: Blocked or failed drains are the most common cause of moisture bypass. Inspect drains on aftercoolers, wet receivers, and filters first.
- Dryer Load: Dryers fail when overloaded. High inlet temperatures (>38°C) or airflow demands exceeding the dryer’s rated capacity prevent moisture removal.
- Internal Faults: Internal dryer operation requires verification. Check refrigerant levels or switch cycles in desiccant towers to identify component failure.
How does Atlas Copco hardware prevent moisture issues?
Atlas Copco systems integrate diagnostics that generic compressors lack. These features allow moisture faults to be identified before liquid water reaches production, materially reducing failure risk.
- Elektronikon® Controllers: These units provide instant alerts for high discharge temperatures and rising dew points, preventing downstream contamination.
- Integrated PDP Monitoring: Sensors provide telemetry to identify dryer failures before they cause production downtime.
- EWD Electronic Drains: These zero-loss drains use capacitive sensors to discharge condensate without wasting compressed air, offering a benchmark in efficiency.
Effective managing air compressor condensate practices reduces unplanned downtime and environmental compliance risk.
Which engineering controls protect air distribution?
Correct distribution infrastructure acts as a final defence against moisture. A swan neck is a vertical piping loop that takes air from the top of a main header to prevent liquid condensate from entering the drop line.
- Drip Legs: Vertical pipes must extend past take-off points to collect residual moisture for drainage.
- Gradients: Horizontal main lines require a 1:100 slope toward a low-point drain to prevent pooling.
- AIRnet Pipework: Modular aluminium piping resists internal corrosion. Unlike galvanised steel, it does not produce rust flakes that block filters and valves.
What are the UK regulatory requirements for moisture?
Maintaining dry air is a legal obligation under UK safety and environmental frameworks. Neglecting moisture levels leads to direct liability.
- PSSR 2000: Moisture causes internal corrosion in air receivers. This compromises structural integrity, triggers inspection failure, and forces unplanned system shutdown.
- PUWER 1998: Contaminated air causes pneumatic safety actuators or brakes to fail, creating immediate safety risks.
- Environmental Law: Discharging untreated condensate into sewage systems is a criminal offence. Condensate is an oil-water emulsion that requires filtration through an OSC range oil-water separator.
- Compliance: Facilities must use effective air compressor dryer solutions to meet compressed air quality standards.
Summary
Water in compressed air systems is predictable, measurable, and preventable. Persistent moisture indicates a failure in drainage, drying, or system design that eventually leads to production loss. J Ll Leach provides detailed air audits and Atlas Copco solutions through our service centres in Stoke-on-Trent, Birmingham, and Shrewsbury.
