Did you know that compressed air is often called the fourth utility? Right along with electricity, water, and gas.
If your business relies on a steady, reliable supply, choosing the right compressor becomes critical. You have likely heard of rotary screw or piston compressors, but another type of compressor to consider is the rotary vane compressor.
This type of compressor is versatile and has a long lifespan.
In this blog, we’ll share information on all things rotary vane compressors, including how they work, why they are perfect for a wide range of applications and maintenance tips.
How Do Rotary Vane Compressors Work?
Rotary vane air compressors are positive displacement machines. The rotary vane’s continuous compression action produces smooth airflow without the pulsations you get in piston-type machines.

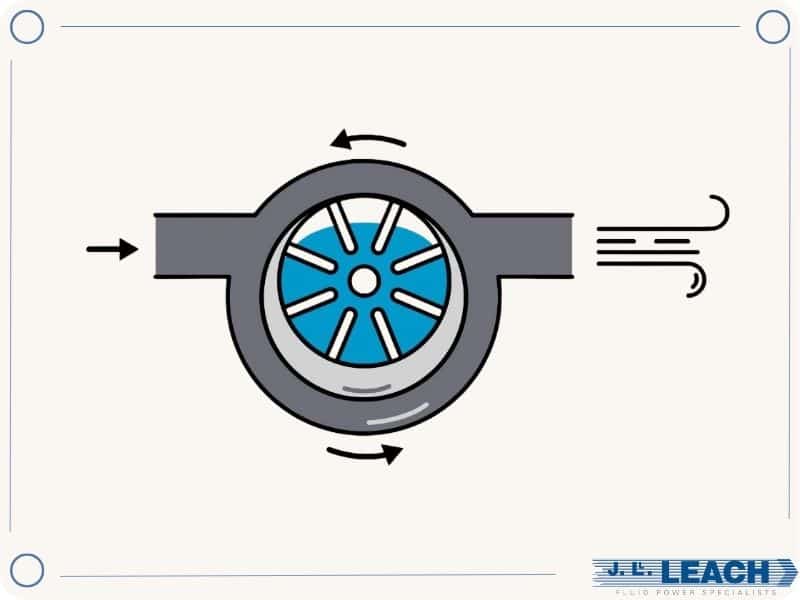

The design is simple, and it works. A basic sliding vane compressor consists of an eccentric rotor that rotates within a cylindrical housing, called a stator. The rotor features a series of radial slots, each containing a sliding vane.
As the rotor turns, centrifugal force ejects the vanes from their slots, forcing the tips to contact the stator wall.
Air becomes trapped between the vanes, as well as the rotor, and the stator wall inside crescent-shaped chambers. As the rotor turns, these chambers shrink in volume, steadily compressing the air.
They operate on Boyle’s Law – restricted by the surrounding metal parts, as the air chamber is reduced in size, the pressure naturally increases. The air is discharged at the outlet port at the set pressure.
The continuous process creates the ultra-smooth, pulsation-free air that is delivered.
Why UK Businesses Choose Rotary Vane Compressors
The unique operational principle of rotary vane compressors gives them several key advantages that make them a wise choice for many industrial applications.
- Simple Design & Durability: With fewer moving parts than other compressor types, the design of a rotary vane machine is inherently simple. Low rotational speed and minimal friction reduce wear. Many machines run for over 100,000 hours.
- Quiet Operation: The stop-start operation of a piston compressor can be very loud. Rotary vane compressors vibrate and make very little noise in their smooth, continuous rotation. Ideal for a quiet office.
- 100% Continuous Duty: In applications that require continuous, smooth duty cycle without stopping, this compressor is built to run 24 hours a day with no cooldown.
- Energy Efficiency: Rotary vane compressors are known for their energy efficiency, especially in the low- to medium-pressure range. The better news? Efficiency can actually increase over the compressor’s lifetime. As the sliding vanes wear into the stator wall over time, a better air seal is formed that minimises internal air leakage for the most efficient air compression.
Typical Applications for Rotary Vane Compressors
Rotary vane compressors are robust, reliable and run quietly. They are a flexible solution in various applications, including:
- Automotive Workshops: Supply air for spray guns and tyre inflation tools, reducing noise in busy workshops.
- Light Manufacturing: These compressors provide steady pressure. Filling stations, woodworking, textiles – any processes that rely on consistency benefit.
- Food & Beverage: Oil-free air is essential. It keeps lines clean – and it also stops contamination during bottling, canning, and packaging.
- Dental & Healthcare: Noise matters. So does purity. Quiet, oil-free compressors power drills and other equipment without disrupting sensitive environments.
Important Considerations: Oil, Maintenance & Air Quality
Oil lubricates moving components in most designs, but it’s more than just a lubricant; it is a multi-functional and integrated machine component. Oil lubricates, provides an airtight seal for compression and cools the system, as well.
Oil-free variants of this compressor are also used in sensitive industries. This helps them to meet high levels of air quality standards (ISO 8573-1).
Preventative and regular maintenance is key. And that’s true, regardless of what compressor type you use.
An appropriate service schedule can keep a machine running efficiently and use energy wisely.
For example, oil changes are typically required every 2,000–3,000 running hours, while vane inspection is part of every major service. At J Ll Leach, our experienced engineers provide comprehensive compressor service and maintenance plans [Potential Future Content Opportunity] for all major brands, not just the ones we sell.
Rotary Vane vs. The Competition: A Quick Guide
Choosing the right compressor type starts with selecting what fits your specific needs.
Here’s a brief comparison of rotary vane technology with other standard options:
| Feature | Rotary Vane | Rotary Screw | Piston | Scroll |
| Best For | Continuous, low-to-medium pressure, and noise-sensitive applications. | High-volume, continuous, and heavy-duty industrial demands. | Intermittent, low-volume, high-pressure tasks. | Quiet, compact, and oil-free applications. |
| Working Principle | An eccentric rotor with sliding vanes creates a trapping air pocket. | Two intermeshing helical screws compress air. | A piston moving back and forth inside a cylinder. | Two interlocking spiral scrolls compress air. |
| Noise Level | Low noise, minimal vibration. | Low noise, minimal vibration. | Very high noise, significant vibration. | Extremely quiet, virtually no vibration. |
| Duty Cycle | 100% continuous duty. | 100% continuous duty (unloaded periods as needed). | Intermittent duty (e.g., 20-30%) to prevent overheating. | 100% continuous duty. |
| Energy Efficiency | High in its pressure range. Improves with use. | High for high-volume needs, especially with VSD technology. | Lower efficiency due to friction and heat. | Very high in a low-volume environment. |
| Maintenance | Simpler to repair, but vanes are a wear part. | More complex design, but with long service intervals. | More frequent wear parts and maintenance are required. | Very low maintenance due to fewer parts. |
This table provides a high-level comparison.
For a more detailed breakdown, you can read our guide on the different types of air compressors and the difference between rotary vane and rotary screw compressors.
You can also explore our article on piston compressors and scroll compressors.
Compliance and Regulations in the UK
Running a compressed air system in the UK means following several key standards. These rules are in place to maintain both safety and efficiency:
- Pressure Systems Safety Regulations 2000 (PSSR): This is a critical legal framework that requires pressure systems to be routinely inspected and have a written scheme of examination to prevent explosions or failures. Our J Ll Leach engineers can perform Air Leak Audits & Leak Detection [Potential Future Content Opportunity] and help you establish a written scheme of examination to ensure full compliance.
- ISO 1217: This standard defines how compressor features and performance are tested and measured. It helps you verify a machine’s efficiency claims before making a purchase.
- ISO 8573-1: This standard defines compressed air purity. It’s especially important in industries like food and pharmaceuticals – or any industry where preventing contamination is key to product safety.
Is a Rotary Vane Compressor Right for You?
Rotary screw compressors may well rule the market.
But if you are looking for long-term value in the right application? Then the proven durability, simple design and quiet operation of a rotary vane compressor is hard to beat.
They have higher energy efficiency and a longer lifespan when compared to traditional piston compressors. Key factors that make the total cost of ownership highly competitive.
Selecting the right compressor for your business is a strategic choice. And one that deserves careful consideration.
Our team at J Ll Leach has over 80 years of experience in fluid power and can provide the expert advice you need. We are a Premier Distributor for Atlas Copco air compressors and also service all major compressor brands, including Hydrovane.
Contact J Ll Leach today to discuss the right rotary vane compressor for your business, arrange a compliance-ready service plan, or request a no-obligation quote.
