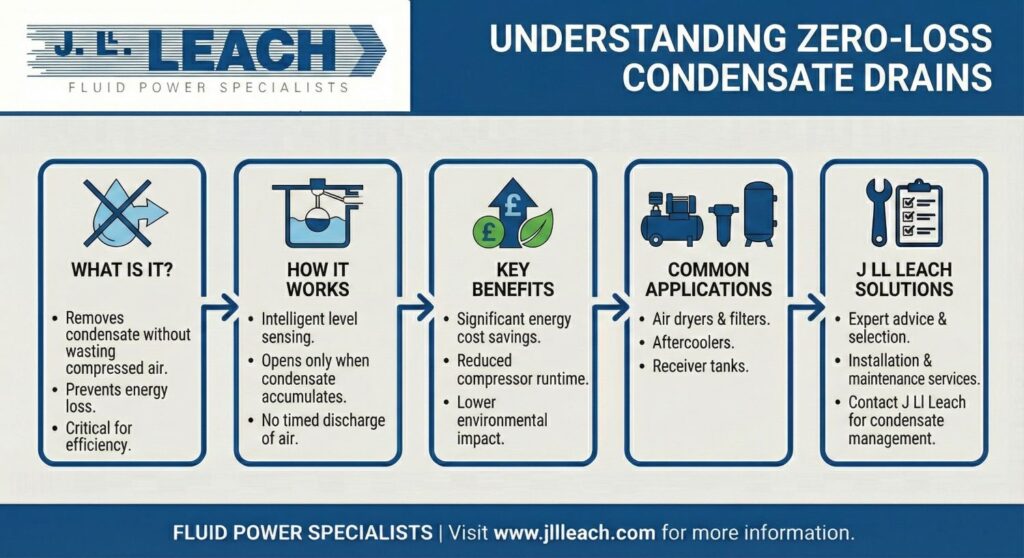

What is a Zero-Loss Condensate Drain for an Air Compressor?

Every air compressor creates condensate.

It’s something every air compressor does – there’s no getting around it.

When the air’s squeezed and cools again, moisture shows up. Before long it’s full of oil, rust, and bits of dirt from the system – a grimy mixture that has no place inside your equipment.

Leave it sitting, and before long you’ll see corrosion, worn tools, and sometimes even contaminated products.

Over time, it can cost a business far more than most realise.

That’s why every compressed air system needs a way to get rid of condensate safely and efficiently. The problem is that many older drain systems waste huge amounts of compressed air in the process.

A zero-loss condensate drain solves that issue. It automatically removes liquid condensate while keeping all the compressed air where it belongs – in the system.

The result is simple: less waste, lower running costs, and better protection for your equipment.

In this guide, we’ll go over how zero-loss drains actually work, why they’re more efficient than older types, and how they help keep your system reliable and compliant.

What is Compressed Air Condensate?

When you compress air, you can’t avoid making compressed air condensate.

There is always water vapour in the air that goes into a compressor. The temperature of the air goes up when it is pressurised. This water vapour turns into a liquid as it cools in the air receiver and pipes.

But this liquid is not just water. It is a hazardous emulsion containing:

• Lubricating oil carried over from the compressor.
• Dirt and dust particles drawn in from the ambient air.
• Rust and scale from pipework and air receivers.
• Atmospheric pollutants.

This mix is usually acidic and very corrosive.

That’s why this untreated condensate will cause corrosion, wash away the lubricants on pneumatic tools, and contaminate final products if it stays in the system.

Our in-depth guide will tell you more about air compressor condensate and how to deal with it.

Why Are Traditional Drains Inefficient?

Many compressed air systems rely on outdated drainage methods that are either unreliable or inherently wasteful.

• Manual Drains: These are simple valves that must be opened by an operator. Their effectiveness depends entirely on human memory. Often, they are left slightly “cracked open” to ensure drainage, which creates a constant, massive compressed air leak.
• Timer Drains: These are automated but “unintelligent.” They consist of a solenoid valve set to open for a fixed duration at a fixed interval. This design has two major flaws:
  1. Guaranteed Air Waste: The timer must be set for the worst-case scenario (a hot, humid day with high condensate production). For the rest of the year, the drain opens when little or no liquid is present, discharging valuable compressed air with every cycle.
  2. Risk of System Flooding: If a sudden increase in humidity or production load occurs, the fixed timer interval may not be frequent enough to cope, allowing condensate to be carried downstream.
• Mechanical Float Drains: These operate on demand as a float rises with the liquid. While a good concept, traditional mechanical designs are highly prone to clogging from the oily sludge and rust in the condensate. This causes the float to stick, either in the open position (creating an air leak) or the closed position (flooding the system).

These problems make operations more expensive right away.

Put simply, losing compressed air forces the compressor to run for longer periods – using more electricity and wearing out parts faster.

How Does a Zero-Loss Condensate Drain Work?

To fix these problems, modern systems use intelligent drainage technology.

Modern zero-loss drains use intelligent sensors to discharge condensate only when it’s needed – and never at the expense of compressed air. This on-demand operation makes them both efficient and reliable.

The core of a modern zero-loss drain is an electronic level sensor.

Here’s how the process works:

1. Collection: Condensate from the system – whether it’s an air receiver, filter, or dryer – flows into the drain’s small reservoir.
2. Sensing: Inside the drain, a small capacitive sensor keeps an eye on what’s happening. It’s always running, checking the level inside the chamber. Sometimes it’s just air, sometimes liquid – it knows the difference.
3. Discharge: The liquid reaches the upper level, which triggers the sensor. This then sends a signal to the control unit. The solenoid then opens the discharge valve. The condensate then quickly flows out under system pressure.
4. Sealing: When the condensate drains out, a little is left behind in the base of the unit. That small amount settles and forms a liquid seal. It’s enough to block any compressed air from escaping. The system then sits ready for the next cycle.

The result is a fully automatic cycle that adjusts its frequency to the real-time condensate load.

On a dry day, it may cycle only a few times. On a humid day, it will cycle frequently, always ensuring complete removal without waste.

Atlas Copco’s EWD and IWD ranges are leading examples of this technology. They integrate these reliable level-sensing electronics and can be connected to SMARTLINK for remote monitoring.

These units work with both oil-lubricated and oil-free systems. They’re built to handle pressures of up to 16 bar and are easy to fit thanks to a simple plug-and-play design.

What Are the Financial and Operational Benefits?

Upgrading to a zero-loss drain from a timer drain provides a clear and rapid return on investment. The benefits are both financial and operational.

For a quick overview, the key benefits are:

• It completely removes air and energy waste.
• Payback is fast – often within the first year.
• Reliability improves, and equipment gets better protection overall.
• Reduced risk of downtime from flooding or component failure.
• More stable system air pressure.

A single timer drain, set to open for just a few seconds every 10 minutes, can easily waste over 1 CFM of air.

At 7 bar and 8,000 operating hours, this single drain costs approximately £230 per year in wasted electricity. A zero-loss drain eliminates this cost entirely, often achieving a full payback on the investment within 6 to 12 months.

The drain also protects expensive equipment downstream by reliably getting rid of all the condensate. This includes numerous parts, including:

• The filters
• Air compressor dryers
• Pneumatic tools and actuators

This protection reduces the amount of maintenance needed. It helps stop downtime when you don’t expect it. And as the months go by, that simple change can help the equipment run longer.

Finally, timer drains cause a sudden, large demand for air every time they fire, which can cause pressure drops across the system. A zero-loss drain discharges only liquid, creating no impact on air pressure and leading to a more stable and efficient operation.

Eliminating this “artificial demand” is a key part of how to reduce air compressor costs.

Are Zero-Loss Drains a Legal Requirement in the UK?

While UK law does not specify which type of drain technology must be used, only a zero-loss drain reliably ensures full compliance by safely managing the effluent without waste.

The main legal concern isn’t the drain itself – it’s what happens to the condensate once it’s collected. In the UK, you can’t simply pour oily condensate into a public sewer or onto the ground; it’s against the law.

In simple terms, the Guide to Compressed Air Compliance in the UK highlights this. The Water Resources Act 1991 classifies this effluent as hazardous waste.

Businesses have to treat the condensate so the oil content drops below 20 parts per million (ppm) before it can be discharged. If that standard isn’t met, the fines can be steep – up to £20,000.

It safely collects the condensate, which then needs to be directed through an oil-water separator.

Systems such as the Atlas Copco OWS range use a series of filters to pull the oil out, leaving water clean enough to discharge legally.

How Do You Maintain a Zero-Loss Drain?

Even highly reliable zero-loss drains require periodic inspection to ensure they function correctly. Regular checks prevent clogging and ensure consistent performance. Key maintenance tips include:

• Visual Inspection: Regularly check the unit for any alarm lights (on electronic models) and ensure condensate is collecting and discharging.
• Use the Test Button: Most electronic drains have a manual test button. Pressing this forces a discharge cycle and confirms the valve and sensor are working.
• Clean the Strainer: Many setups have an inlet y-strainer fitted on the line. It’s worth checking and cleaning it from time to time – rust and scale can build up there and restrict the flow into the drain.
• Internal Cleaning: The sensor and valve assembly may also need a clean once a year, depending on the model and how much condensate the system handles. A quick service removes the oily sludge that tends to collect inside.

J Ll Leach includes checks on all condensate management components as part of our comprehensive maintenance plans.

How Can J Ll Leach Help With Condensate Management?

J Ll Leach is a Premier Distributor for Atlas Copco, providing expert, end-to-end condensate management solutions for UK businesses.

• Products: We supply and install the full range of Atlas Copco’s highly reliable EWD series electronic zero-loss drains. We also provide the legally required Atlas Copco OWS oil-water separators to create a complete, compliant system.
• Services: Our services go beyond simple supply. We can design and install a full condensate management system tailored to your site. We also conduct comprehensive air audits and ultrasonic leak detection surveys to identify all sources of energy waste in your system.
• Support: This helps keep your drains and separators running efficiently and within regulations. Our depots in Stoke-on-Trent, Birmingham, and Shrewsbury mean we can respond quickly when support is needed, helping to cut downtime.

In the bigger picture, upgrading to a zero-loss drain is a smart move — one that improves efficiency, boosts reliability, and keeps you compliant.

For expert advice on installing or upgrading zero-loss condensate drains, contact J Ll Leach – your local Atlas Copco Premier Distributor serving Stoke-on-Trent, Birmingham, and Shrewsbury.
